5 years warranty Ultra Slim 50W LED Flood Light 120Lm/W IP65 ETL DLC CE listed outdoor lighting fixture
(I) Product Specifications:
* 50W wall mounted outdoor lighting fixture with ETL,DLC,CE,RoHS listed,3 to 5 years’ guarantee;
* Pure Aluminium heat sink structure ensure a very good heat dissipation. processional optics design,>50% efficiency higher than the general flood light in the market;
* Adopting SMD LEDs light source, high output lighting efficiency 90-100lm/W, high Color Rendering Index (CRI>80), excellent heat dissipation, low light decay;
* Innovative G shape buckle technology,glass anti falling off,easy installation and maintenance;
* Ultra slim streamline appearance design,fashion and classical;
* Die casting Aluminum shell, good mechanical strength and heat dissipation, surface anti-corrosion coating processing, high anti-corrosion grade WF2, can be used indoor and outdoor prevent corrosion environment.
* High quality Meanwell/Sosen power supply, AC100V~277V,50/60Hz input voltage,constant voltage or constant current output, quick responds,no flicker, lightning protection, PFC function available.
* With high-strength tempered glass and die-casting Aluminum shell, high shock-proof level IK08
(II) Applications:
* Advertising, Billboard lighting;
* Building exterior lighting;
* Warehouse, Factory, stair corridors lighting;
* Large and small parking, Square, Stadium lighting etc;
* Bridges and public places, as well as other industrial and commercial lighting.
* Gardens lighting;
* Suitable for wet locations.
(III) Quick View:
* 50W, 5,000-6,000lm, IP65;
* Inputing rating: AC100-277V 50/60HZ
* Beam Angle: 120º
* Size: 265(L)*260(H)*47.5(D)mm;
* With CE, RoHS certification and ETL,DLC,CE,RoHS listed;
* With 5 years’ warranty upmost.
(IV) Technology Parameters:
Item No. | KD-FL050-BG2 | Housing color | Silver, black, grey etc |
Input Voltage | AC100-277V 50/60HZ | CRI | >80Ra/>70Ra for option |
Power | 50W | IP Ranking | IP65 |
Working Temp | -20 to +45℃ | Power Factor (PF) | ＞0.9 |
Luminous Flux | 5,000-6,000lm | Material | Die-cast Aluminum |
LED QTY | 50PCS | Light Source | SMD3030 |
Beam Angle | 120º | LED Efficiency | 100-120 lm/W |
CCT | 2700-6500K | Certificate | CE, RoHS, ETL.DLC |
Dimension | 265(L)*260(H)*47.5(D)mm | Warranty | 3 to 5 years |
Weight | 2.1Kg | Driving Brand | Meanwell/Sosen |
(V) Delivery and Payment Details:
Delivery |
Delivery Time | 5-7 working days for sample orders,10-15working days for mass orders |
Payment | T/T,L/C,Western Union |
Payment Terms | 30% T/T in advance,balance before shipment |
MOQ | 20PCS |

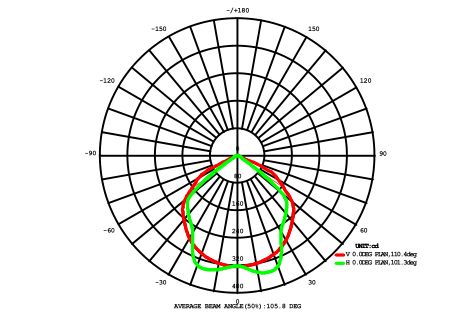

(VI) Optical & Photometric Data:
(VII) Package:
About Package |
Package Carton | Neutral Package/OEM Package |
Components Included | Name | Qty”/PCS |
LED flood light | 1 |
Specification | 1 |
Warrantee Card | 1 |
(VIII) Instructions for installation:
1.Install the lamp by the stand on the ground;
2.Install lamp directly;
3.Hang the lamp by the stand;
4.The angle of the lamp can be adjustable;
